NegAir 5000S

NegAir 5000S

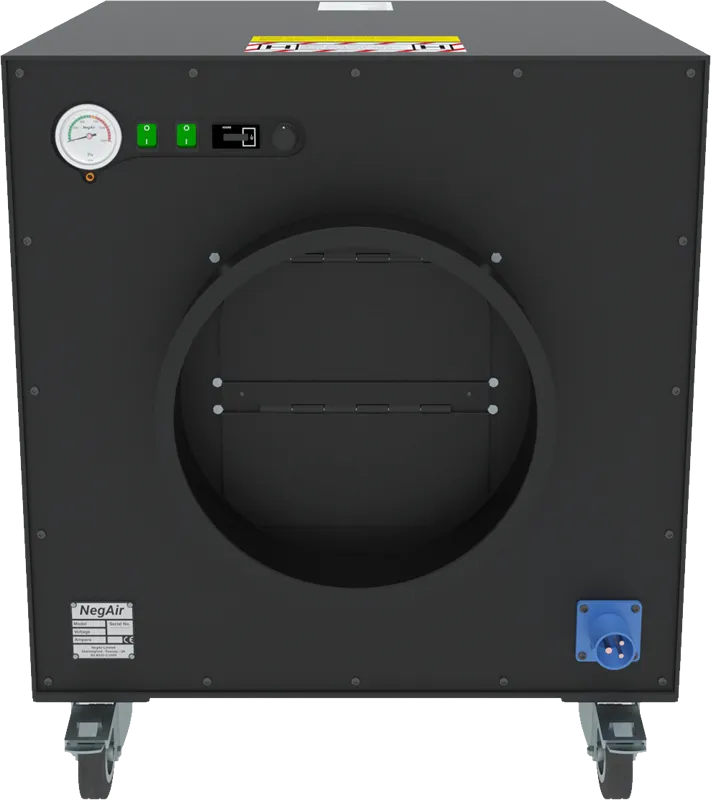

Hour CounterManometerOn/Off SwitchSpeed ControlHeavy Duty100mm CastorsNon Return FlapPower Connector
NegAir 5000S
Smooth Deep GripHandles

NegAir 5000S

The NegAir 5000S offers all the robust features of the NegAir 2000S but with a higher capacity for larger projects. It includes 100mm heavy-duty industrial castors for easy mobility, with two lockable for stable positioning. This model also features smooth deep grip handles and rigid flaps to prevent backdraft, ensuring efficient operation.

Additionally, the NegAir 5000S is equipped with a comprehensive control system featuring an hour counter, speed control, manometer, and an illuminated on/off switch.

Available in both 110V and 230V configurations and designed in accordance with BS 8520.

Nominal airflow
5000 m³/hour
Main filter dimensions
610 x 610 x 292mm
Prefilter dimensions
600 x 600 x 50mm
Machine dimensions (width x height x length)
735 x 850 x 740mm
Spigot diameter
400mm
Spigot length
76mm
Weight (no filters)
57kg
Weight (with filters)
75kg
Voltage
230v (110v)
Current
16A (32A)
Noise level (measured at a distance of 1m without ducting)
86 dBA
Body material
Black ABS
Manometer (0-1250pa)
check
Hour counter
check
Variable speed control
check
Illuminated on/off switch
check
Filter alarm
close
Stackable
close
Roving filter box
Optional
Double HEPA
Optional
